Mustangserver: Manual

Please contact

Jochen Stärk

jstaerk@usegroup.de

or

Martin Wachtveitl

mwachtveitl@usegroup.de

The status (e.g. upcoming maintenances) of the server is available on it’s status page.

User access to the web interface is possible via https://api.usegroup.de/. Terms of service are listed in the chapter Terms of service.

To register please access https://api.usegroup.de:9443/devportal/services/configs

and click "Create Account" link on the bottom left. Select a username, "Proceed to self register", enter the rest of the data and have your email verified.

Afterwards you can login on https://api.usegroup.de/devportal/ .

You will need it your username in order to log in and in case you want to reset your password, both are not possible using your email address. In case you forgot your username feel free to inquire at info@mustangproject.org using the email address you are requesting the username for. This username does not have anything to do with optional username parameters mentioned below.

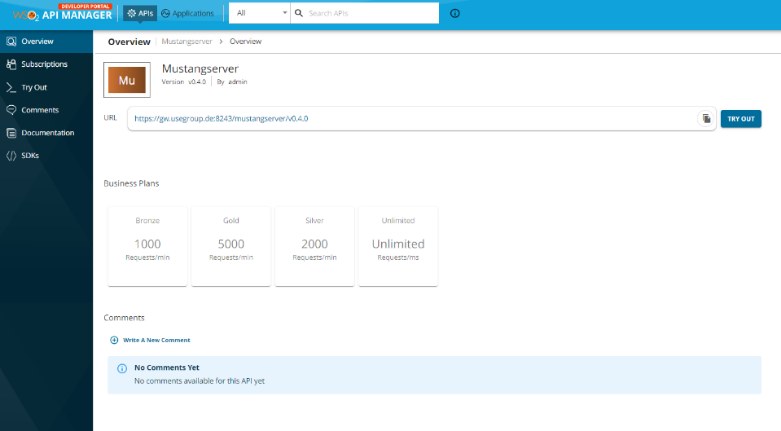

After being logged in you need to register your interest, i.e. „subscribe“ to the APIs you require.

If you select the desired Mustangserver version and click on the blue "try out" button (not the link in the navigation) on the next page you should be able to click a "get test key" button.

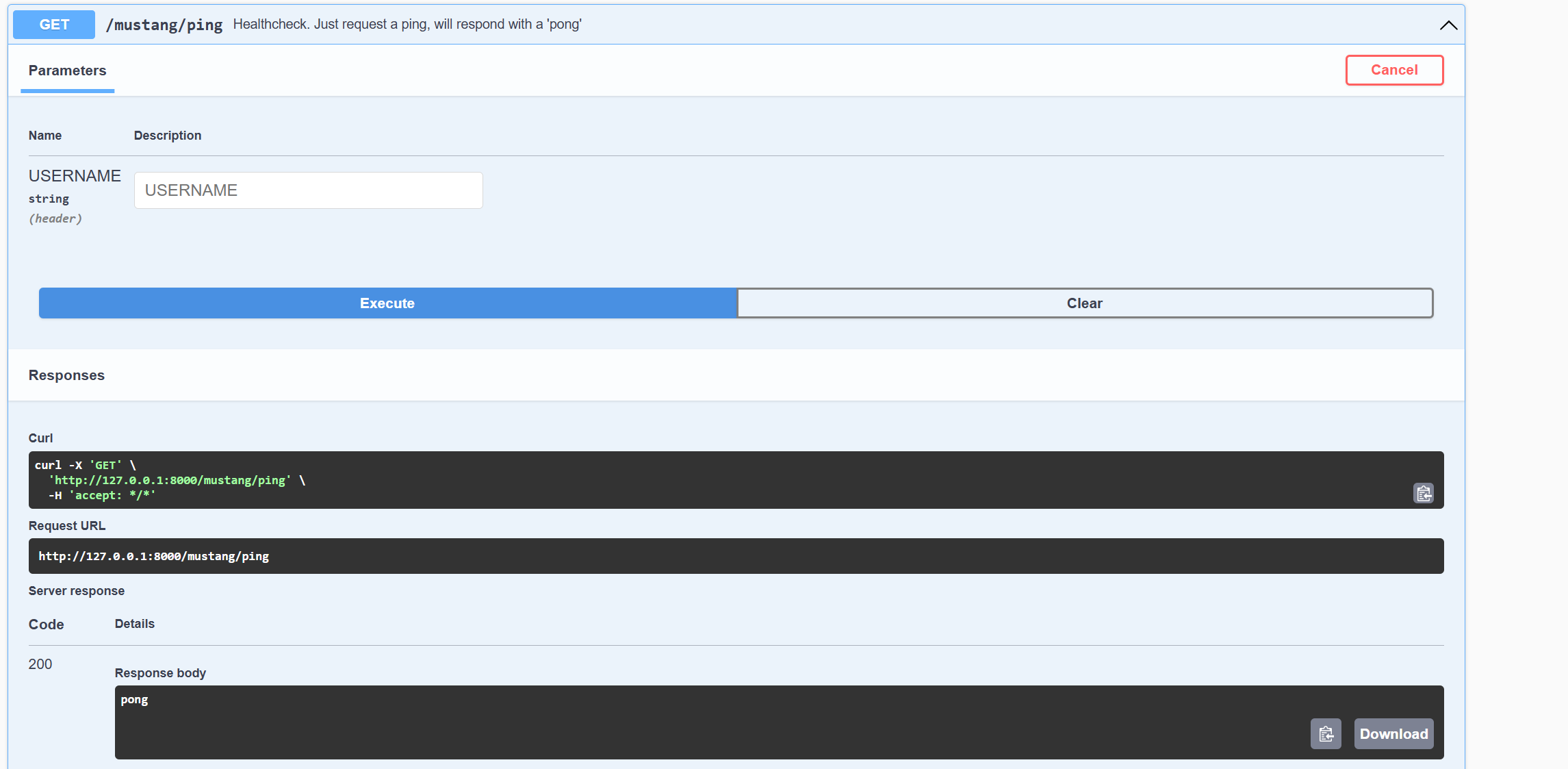

e.g. when you open the "ping" operation and click "try it out" and "execute" you should get a "pong" response.

You can always change your password on https://api.usegroup.de/devportal/settings/change-password/

There is a optional „username“ field for all operations: Please ignore it. It serves as a placeholder where the API management transmits your username, if it were set by any application the value would be overwritten anyway.

If you leave out the version number in the request to the gateway you will always be using the latest recommended (usually the latest) version. In that case e.g. your „ping“ endpoint changes from https://gw.usegroup.de:8243/mustang/1.0.0/mustang/ping to https://gw.usegroup.de:8243/mustang/mustang/ping .

New versions may be retired as soon as six month after release of the successor. It is possible to always use the latest (more precisely: recommended) version by removing the version from the endpoint. This is an example of the validate endpoint:

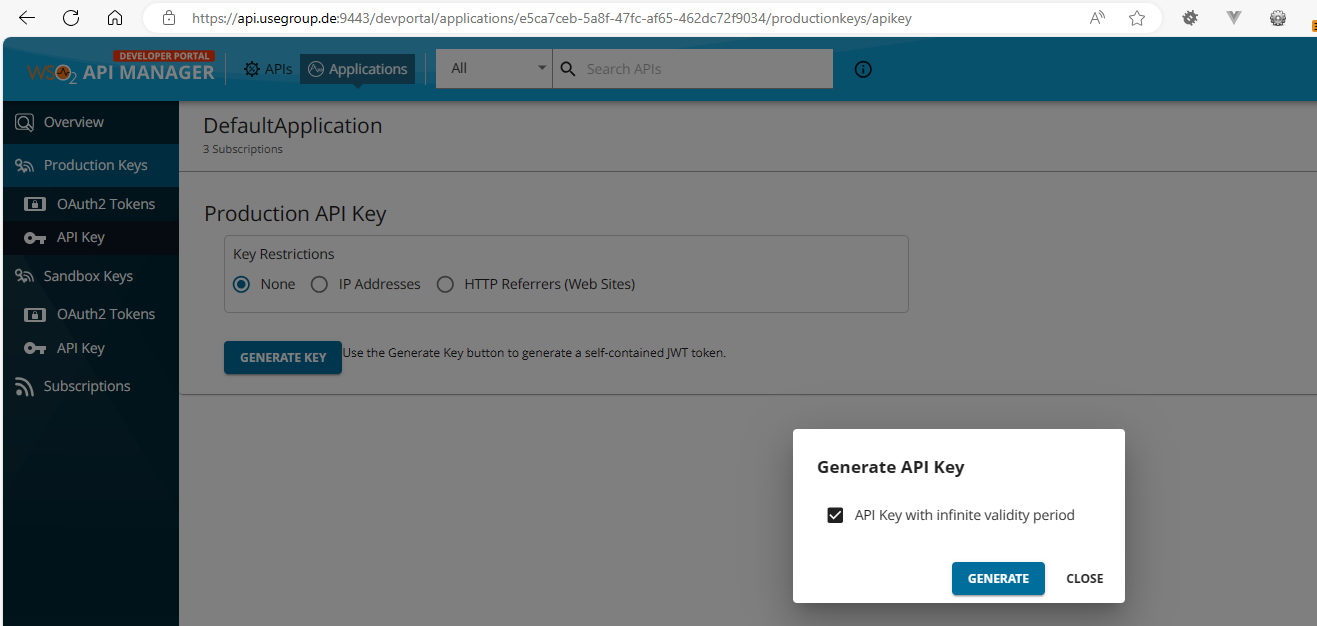

Please note that a API key encodes the subscriptions at the time of the creation of the key, and that a newer version will require a new subscription (to that version), i.e. you should not use the most recent version in conjuntion with API keys because you will require new API keys for new versions.

In case of an exception Mustangserver will return a http status code of 400 and the message of the Exception will be returned in the „message“ field of the according JSON.

The http://api.usegroup.de/ uses WSO² as API management which in turn uses Apache Synapse (https://synapse.apache.org/) for mediation/transformation/orchestration. This means that mediation and orchestration can be developed e.g. in WSO²‘s Integration Studio (https://wso2.com/integration/integration-studio/) and uploaded as XML file. Apart from acting as a load balancer and central authentication this allow to

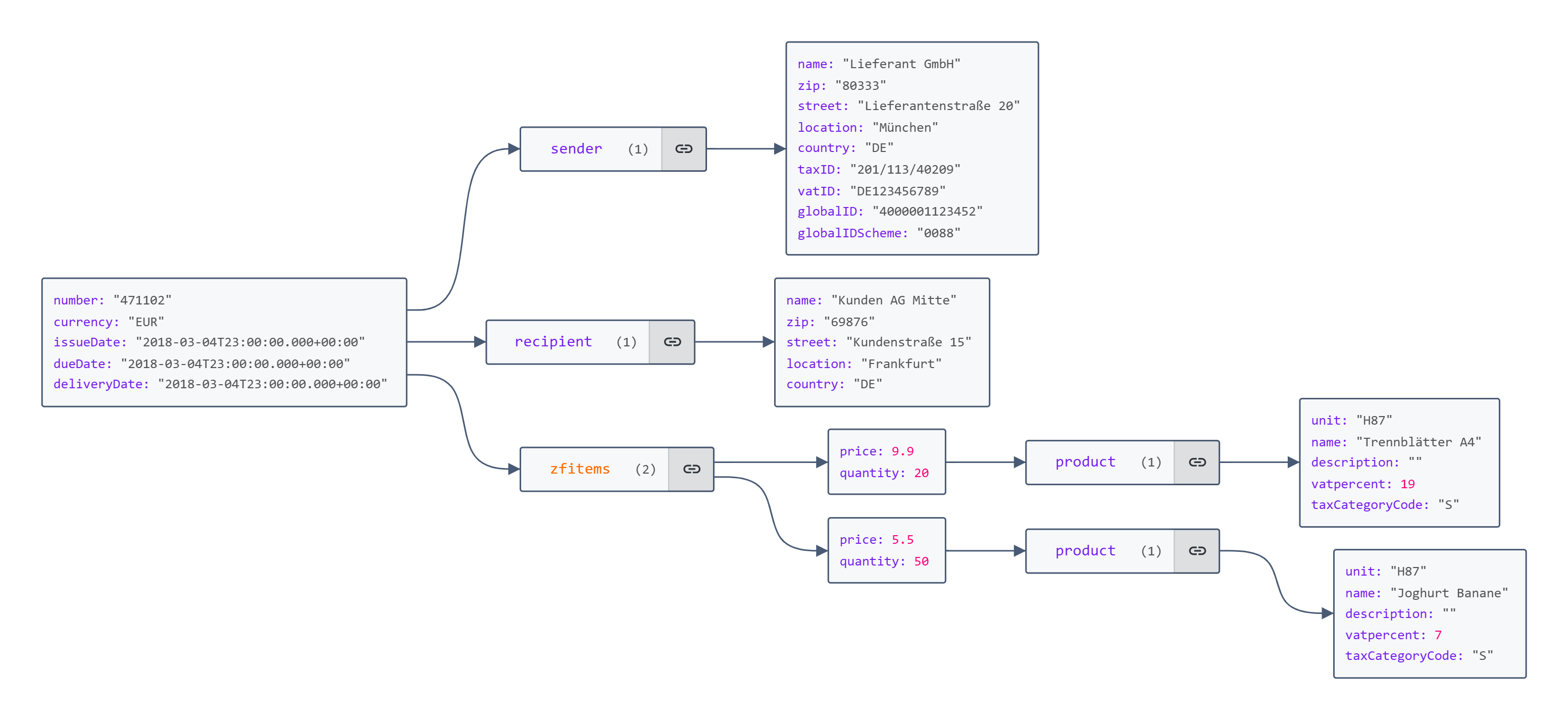

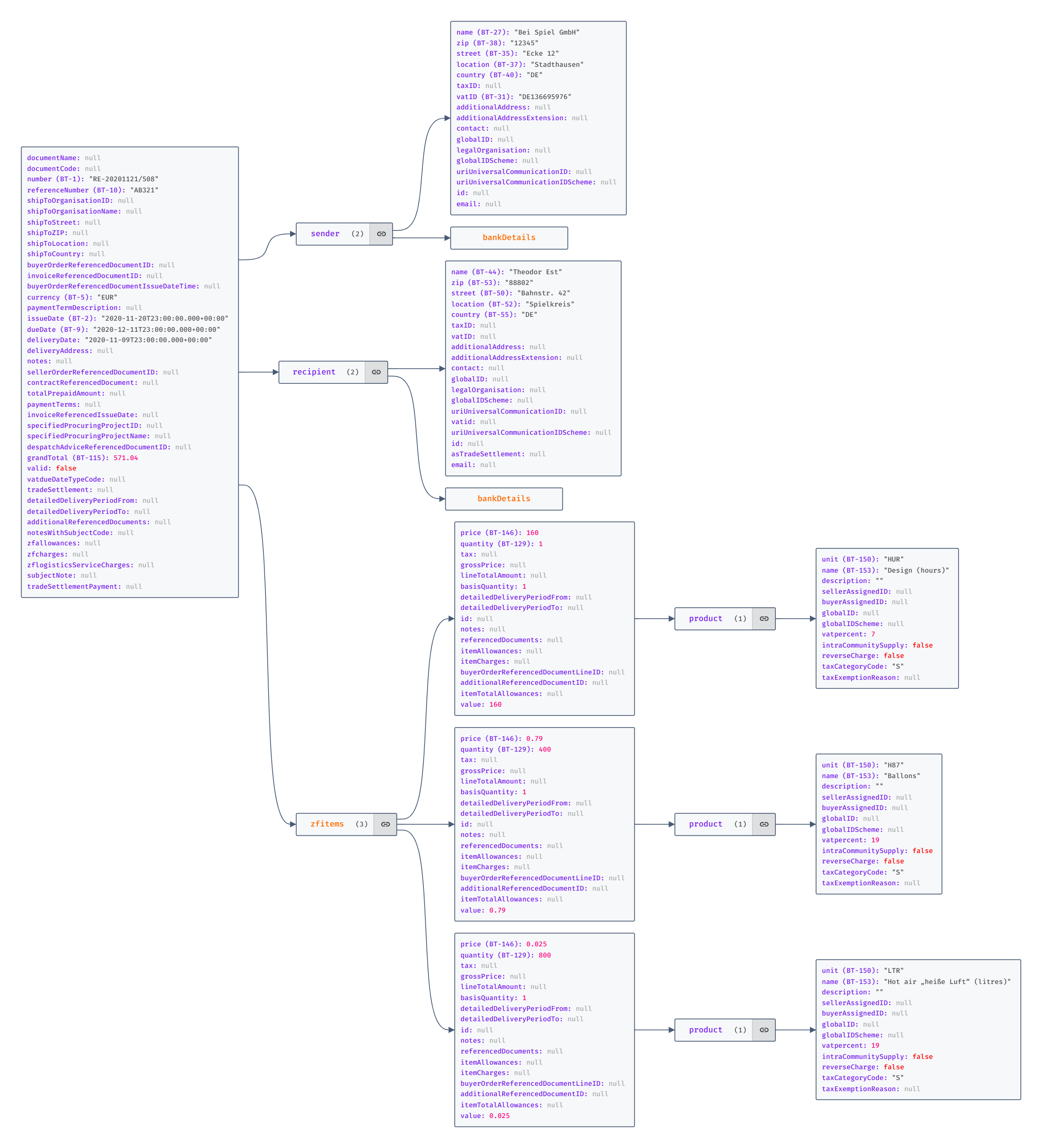

Mustangserver has two important main classes, invoice and calculatedInvoice. Invoice contains tradeparty classes for recipients and senders and item classes which in turn contain instances of product classes.

The difference between invoice and calculatedInvoice is that the latter contains (redundant, because calculatable) properties like grandTotal. These attributes are provide for courtesy when reading invoices but are not required when wrinting. However, if they are present when writing (e.g. combine or invoice2XML) they will raise an error if the invoice calculation does not match. This can be useful when a PDF file has been generated with another process and the Factur-X-XML is supposed to have the same values, in which case the PDF values can be provided because an error would be more helpful than a silently incorrect Factur-X file because the PDF has been calculated incorrectly, or uses features not yet available in Mustangserver.

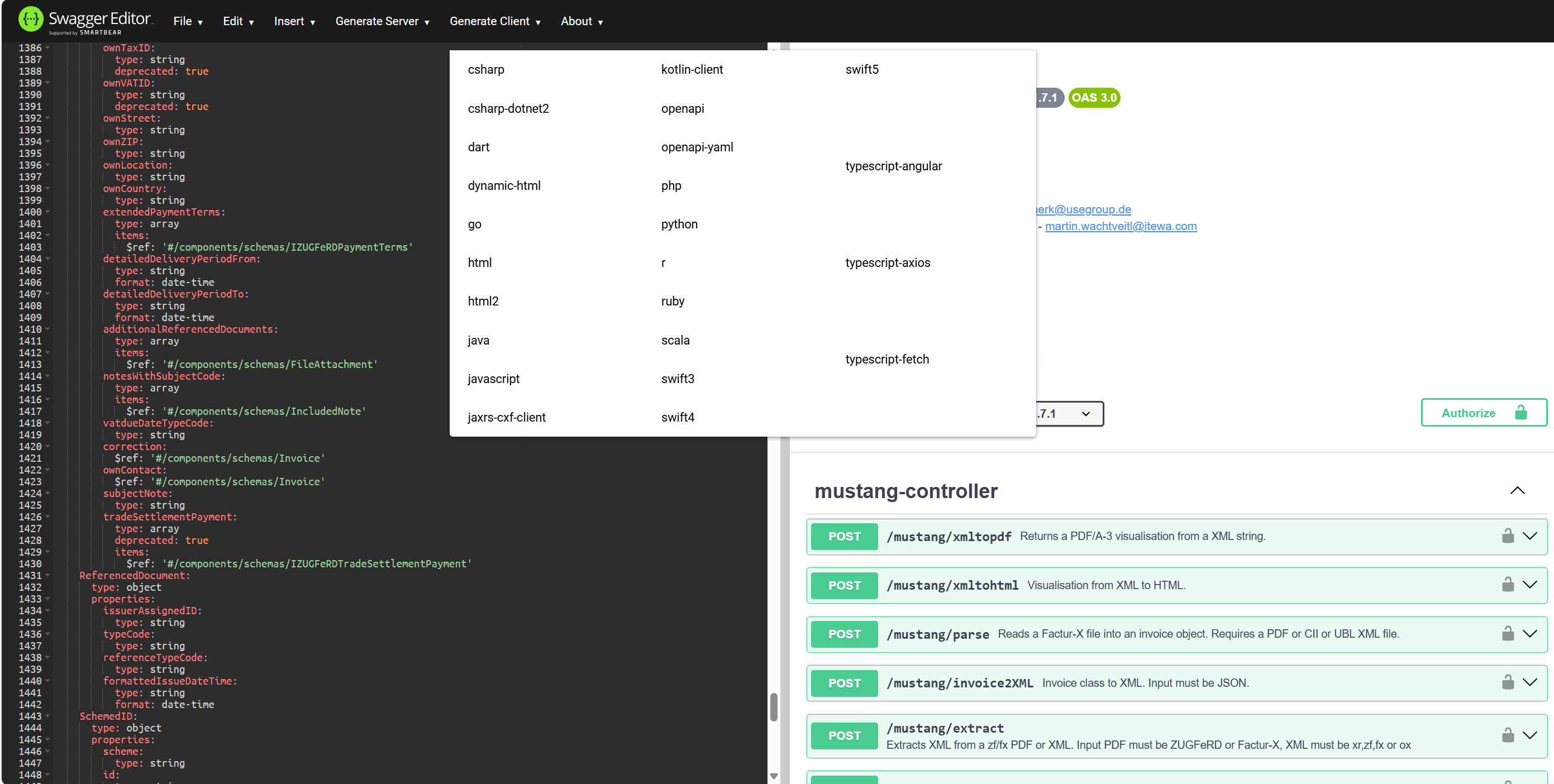

Apart from the OpenAPI Generator (which is e.g. used for our xref: C#/.net tutorial), Swagger editor used to offer the generation of clients, but this functionality has now apparently been moved to it’s docker image.

All generated clients require testing and customization, e.g. as regards oAuth authentication, e.g. see our PHP tutorial. We don’t guarantee support for all of them, some of them are likely to not work at all, but these are the most important swagger-editor-docker generated Mustangserver clients:

On our website we elaborated how precisely to e.g. create a

Bruno is an open source alternative to Postman, graphical user interfaces to create/execute requests on REST APIs.

This example is based on Postman, you will need enabled client credentials as described in the PHP tutorial.

Use Import|File|Upload Files to upload you Openapi.yaml file into a Mustangserver collection.

Add a request to https://gw.usegroup.de:9443/oauth2/token?grant_type=client_credentials and call it Token Request. Postman will auto-detect the Parameter in the URL. Change the type to POST.

In Headers, add a new field Content-Type with application/json as its value.

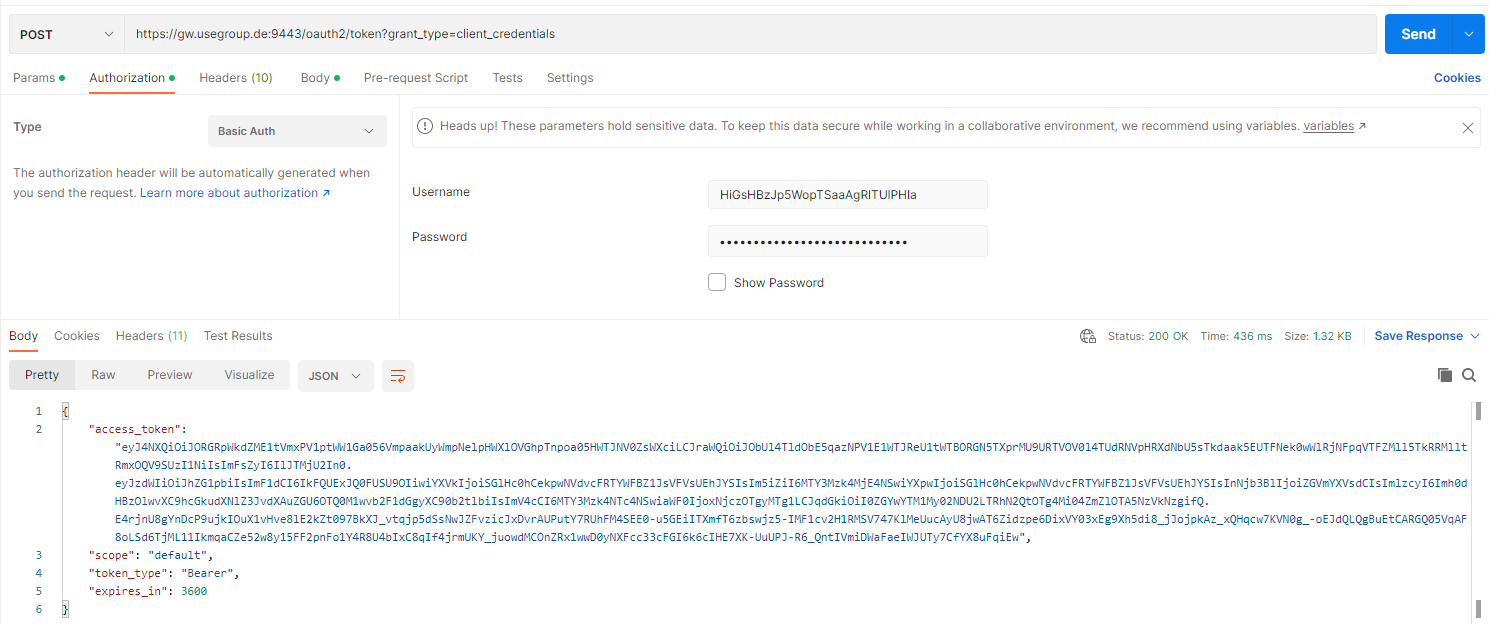

The tab Authorization should be Basic auth with your client id and secret as username and password. Once you click Send, an according access token should be submitted:

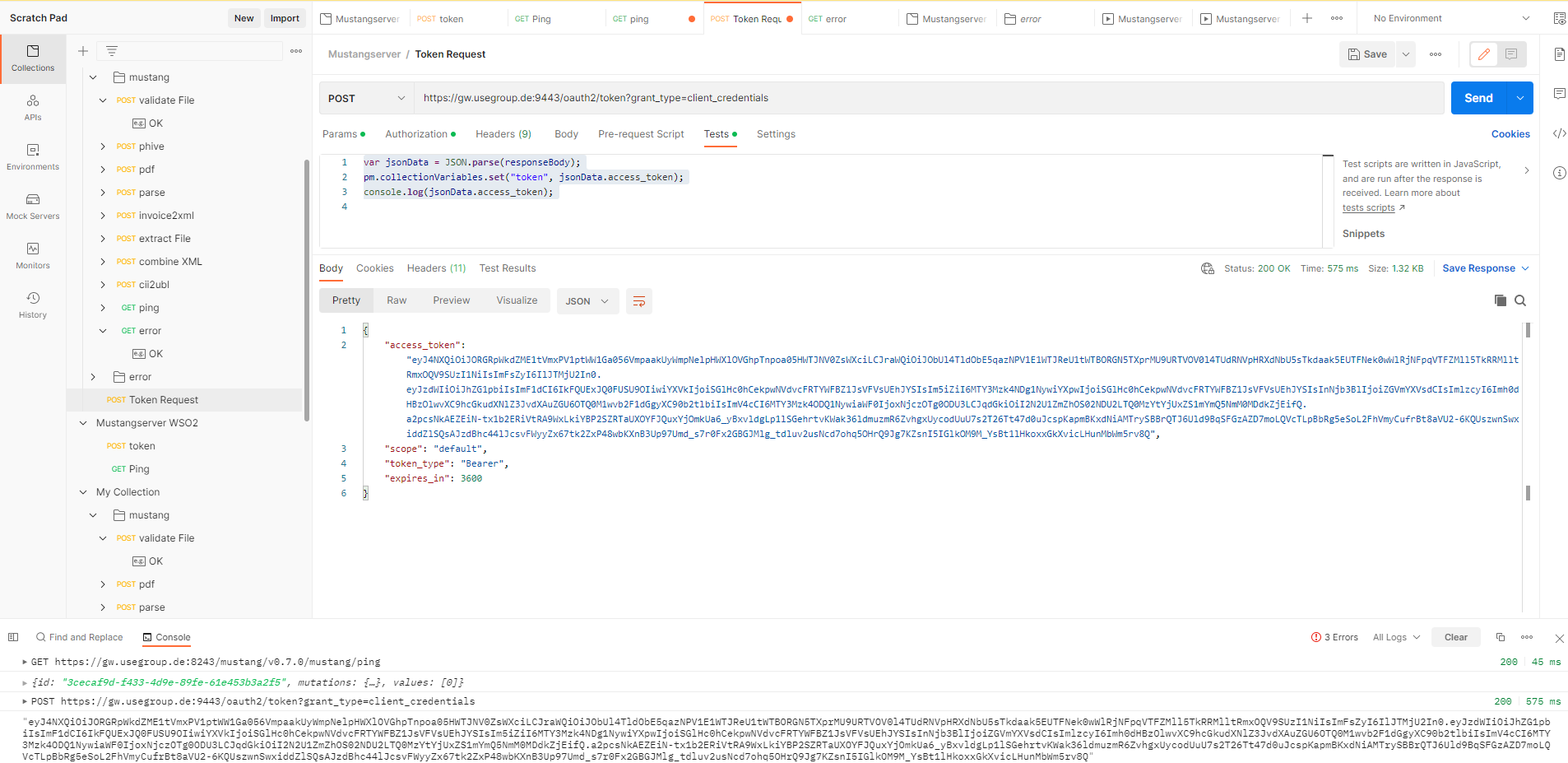

In the „Tests“ tab and View|Show Postman Console (Alt+CTRL+C) . Once you click Send again you should be able to see the access token also in the Console:

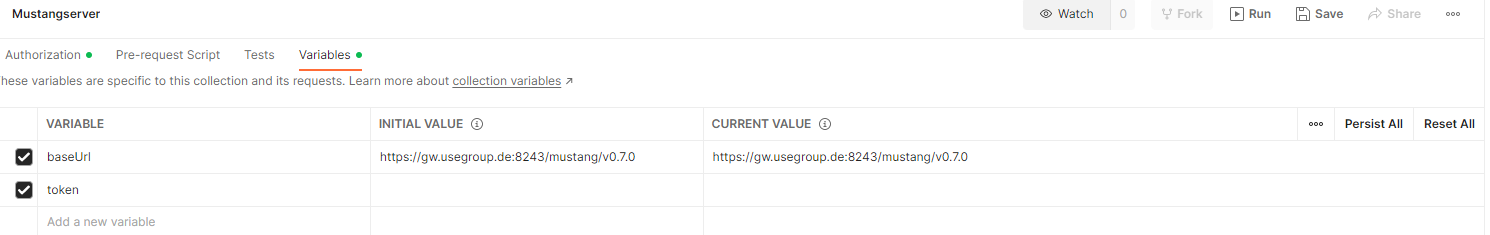

In the collection, click on the variables tab and add „token“ as a collection variable.

You can now add the variable {{token}} as authorization to any request. The variable will be available and the requests work after you click on „Send“ of the Token Request for the first time.

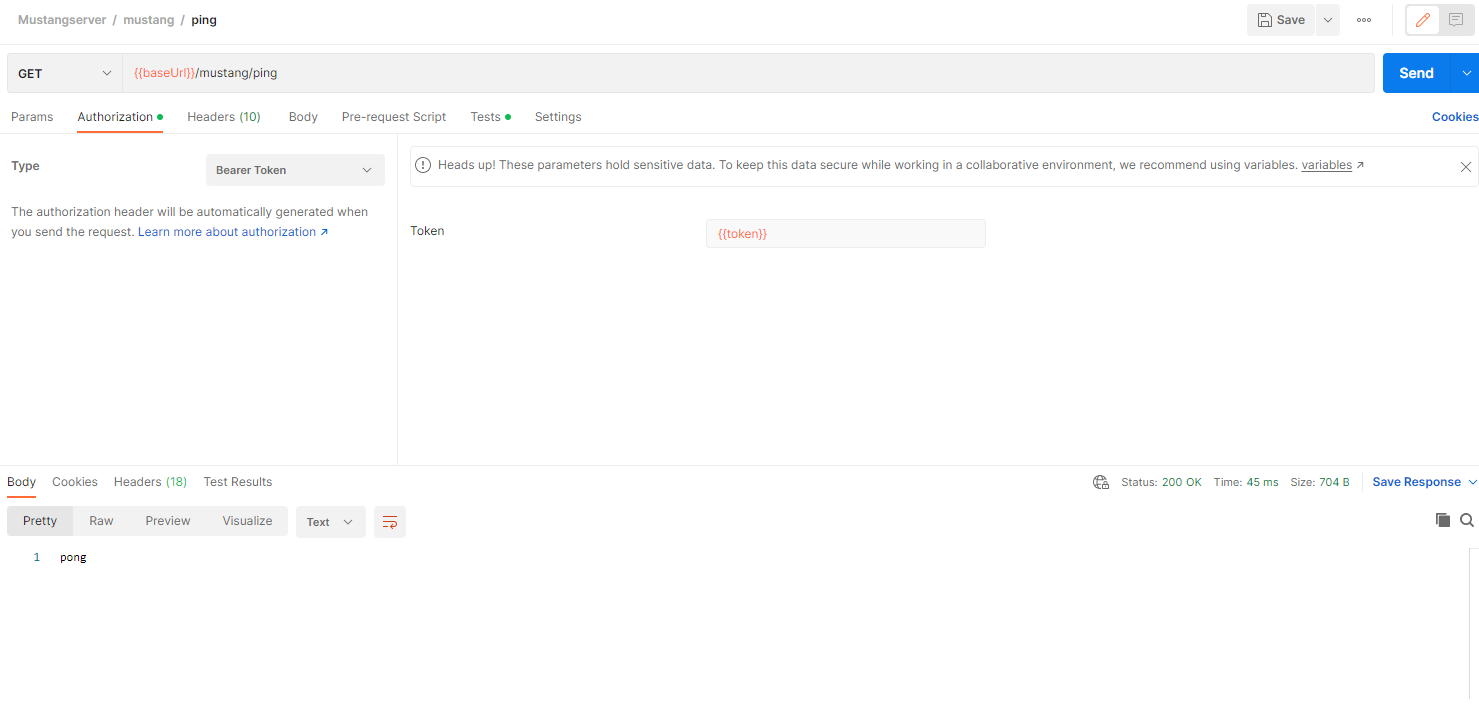

Please note that ping was answered by pong.

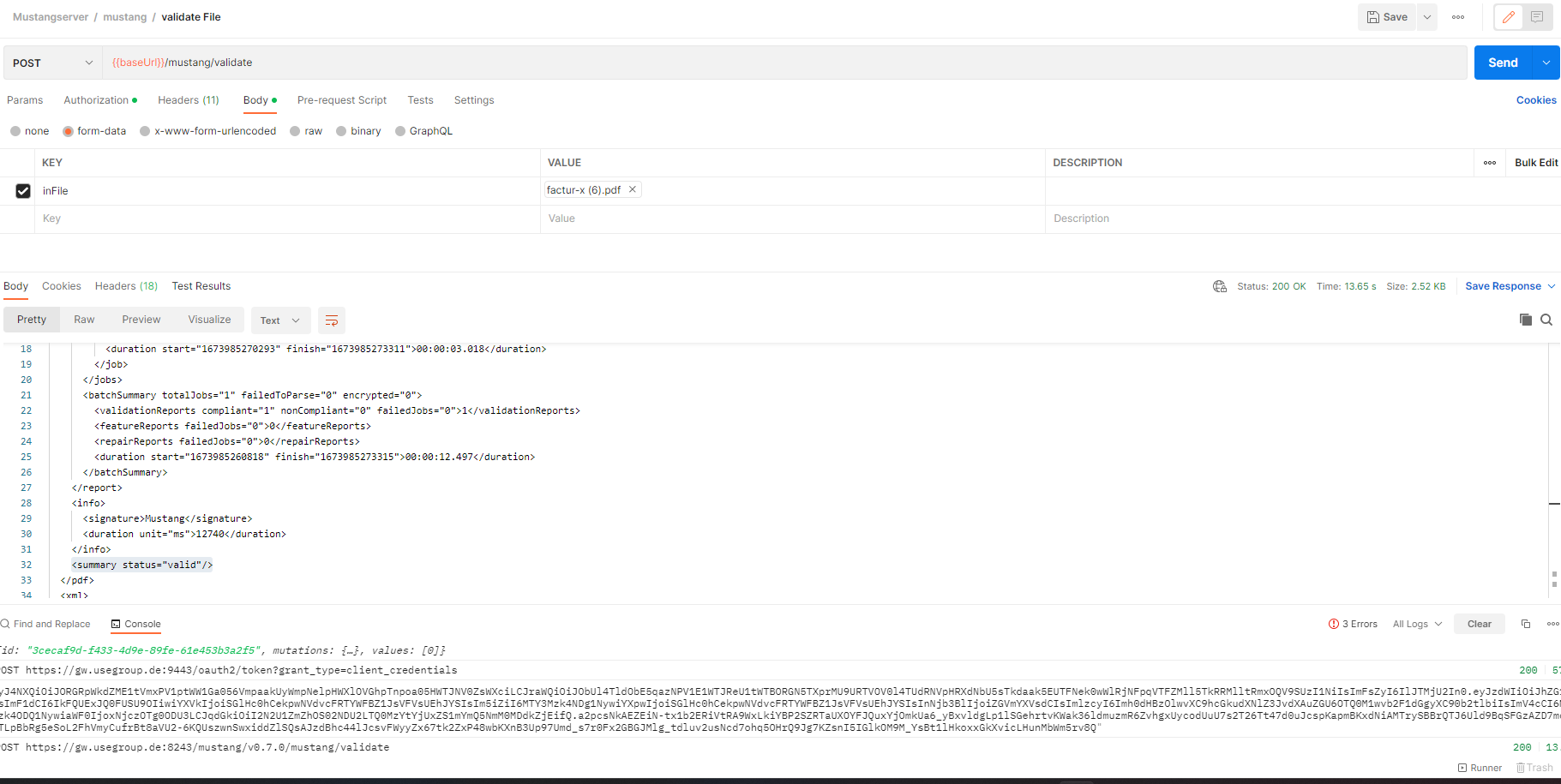

Where appropriate, e.g. in the validation endpoint, Postman will allow you to select files, this being a valid factur-x:

Jmeter is a generic load testing tool and load generator.

If you want to perform load tests, in order not to affect our production servers, we will happily grant you access to our mirror infrastructure, i.e. we will guarantee that the hardware, software and settings are identical.

https://openapi-generator.tech/ supports a Jmeter export but that does not handle authentication so here we describe how to set up some Jmeter performance test manually.

For this example, you will need enabled client credentials as described in the PHP tutorial.

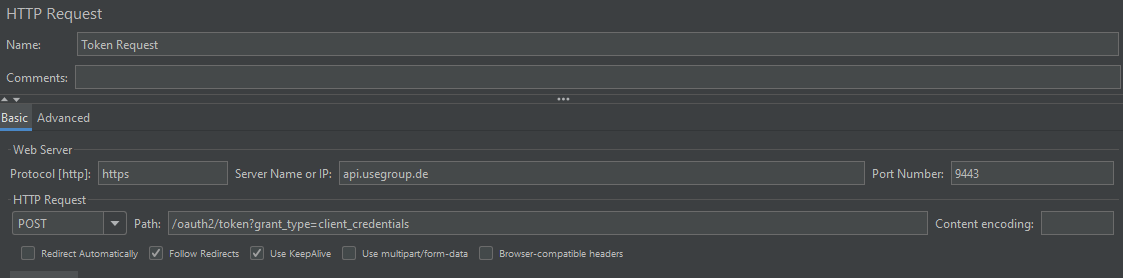

Right click your Test plan, add a Thread Group with a Once Only controller. Below that, add a HTTP request sampler, we’ll call it Token Request. This is how it is defined: Change protocol to https, method to POST, add server name and port number, and add the path:

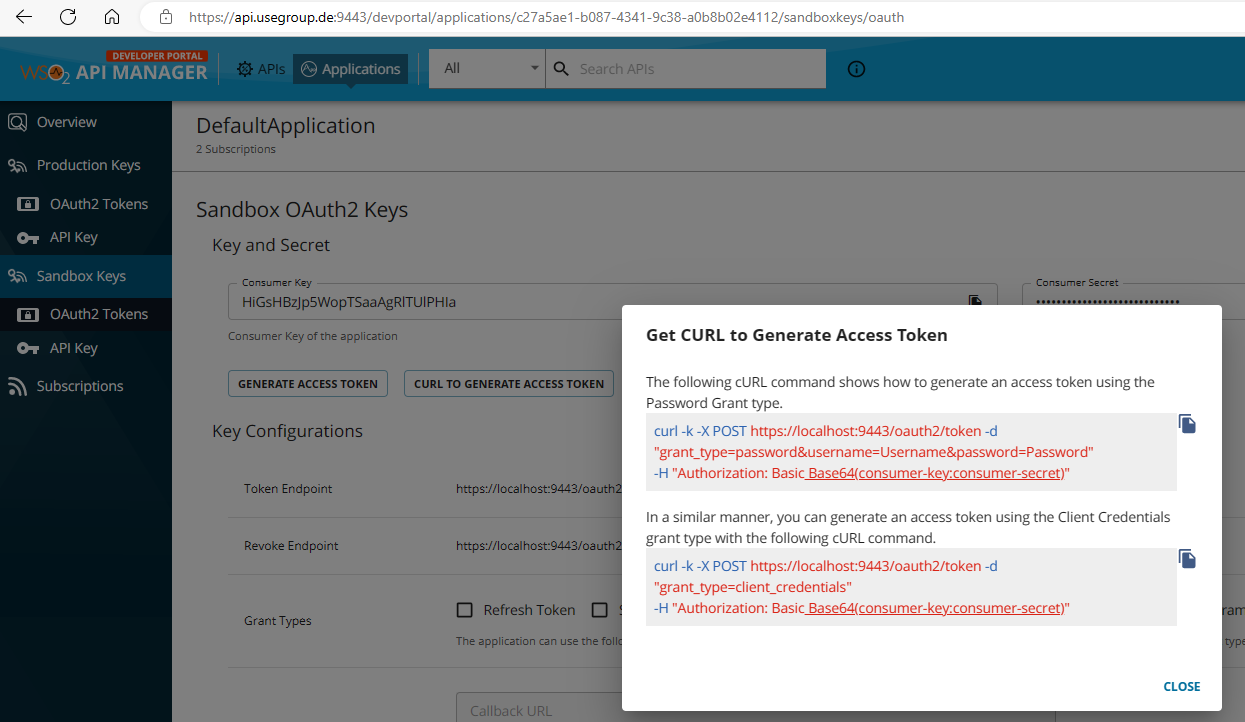

Base64encode your <consumer key>:<consumer secret> as described on the applications page of the API management:

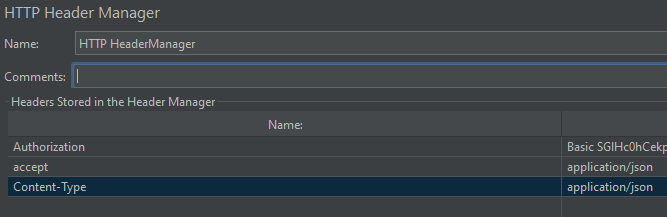

In Jmeter, below the Token request, add a HeaderManager with Basic Authorization as described:

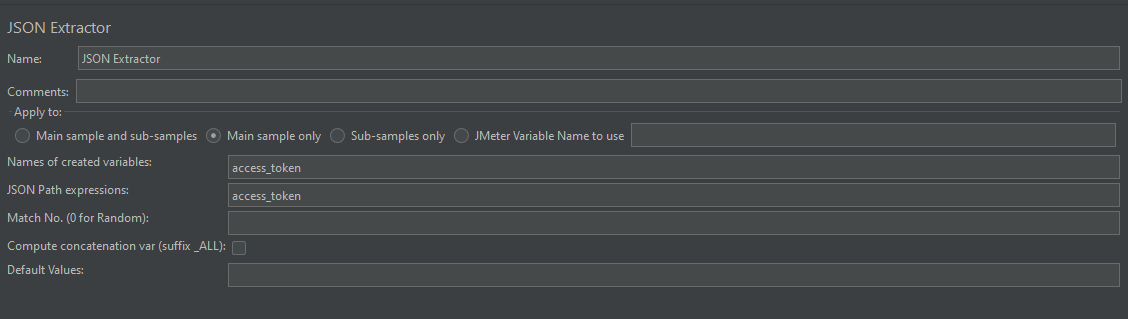

And from the response, also below Token Request, extract the JSON value access token into a Jmeter Variable access token using a JSON Extractor:

Add a sampler View Result Tree to confirm the results and a debug sampler if you like (in the results tree you will then be able to e.g. see the current variables when you click on the results of the debug sampler).

Run|Start should give you green entries in the results tree.

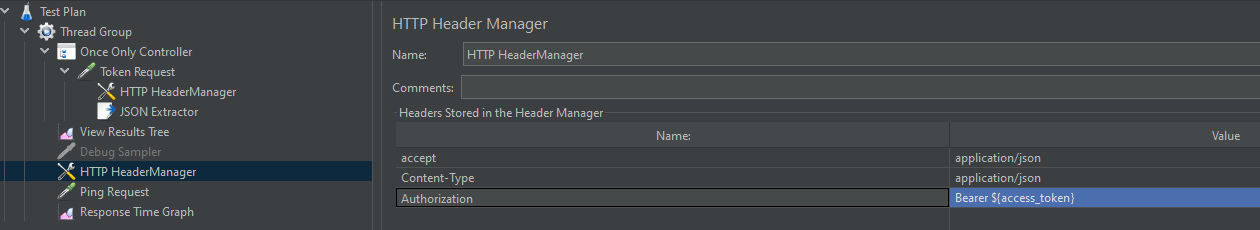

Now we will set the ordinary authentication as header: add another Header Manager outside of the Token request and add the variable as token, i.e. Authorization being Bearer ${access_token}

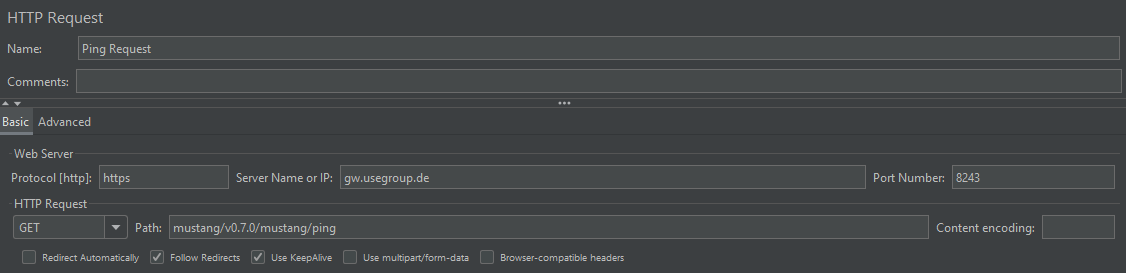

You can then add a simple ping request in the thread group

and e.g. a Response time graph.You can then set the Thread group loop count to infinite, start the sampling and check the results tree.

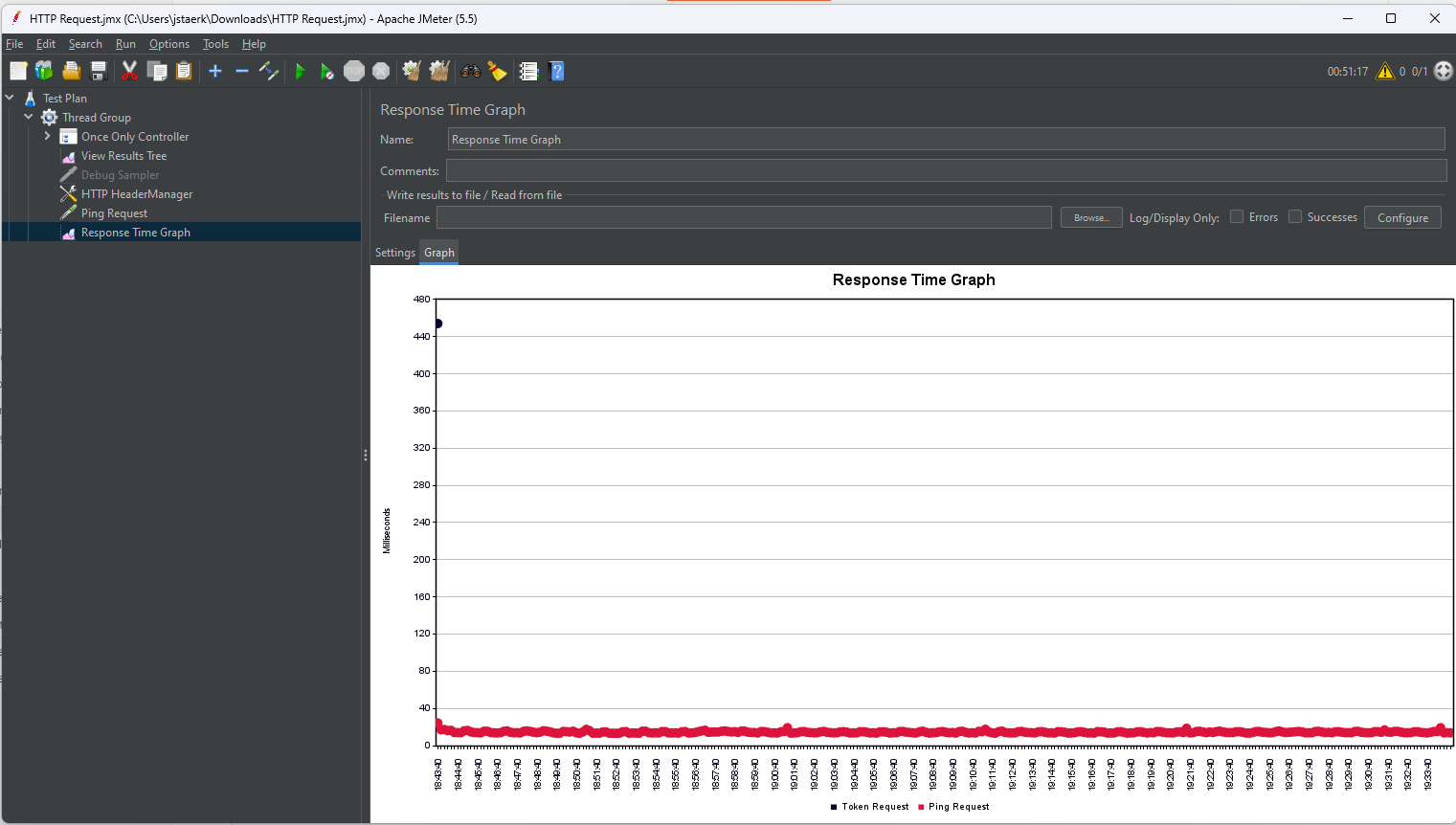

After a while the response time graph will look like this, indicating the initial login took ~440ms and the usual response time to our „ping“ is ~20ms.

You can setup to use a inhouse (or central) „Sentry“ Exception Tracking Server ,

Of this document:

0.7.0 on 2023-01-19 by Jochen.

0.8.0 on 2023-02-25 by Jochen: Added Mustangserver 0.8.0 (=Order-X)

0.8.1 on 2023-02-26 by Jochen: added C++-Client, PDF/A-param to PDF endpoint

1.0.0 on 2023-09-26 by Jochen: most recent endpoint, neccessity to subscribe, split between mustangserver and mustangserver-docs, updated list of Ves-IDs, added change password url

1.1.0 added username field, exception handling, invoice2XML parameter standard was renamed to format. Better Exception handling. CombineXML now also allows PDF/A-3 input.

1.2.0 on 2024-01-31 /combineXML /parse and /invoice2XML now support XRechnung 3.0.1

1.3.0 on 2024-02-29 Endpoint /combine is now available again (combine JSON and PDF to fx), /phive has been updated, now auto-detects Ves-IDs if none specified and now also supports e.g. XR 3.0.1 (from 135 to 143 VesIDs). /xmltohtml and API keys documented. Mentioned Bruno.

1.3.1 on 2024-07-29 JSON structure documented, added Troubleshooting

1.4.0 added description of detach and xmltopdf endpoint and of C# sample client. Added section classes.

1.4.1 added chapter on Docker config for in-house server. Corrected timezone in example. Added BT Mapping and invoice class description.

1.4.2 Added paragraph on most recent versions and API keys, added examples for §19 UStG small businesses and intra-community supply. Added documentation for corrected invoices, cancellations and credit notes.

1.5.0 New in the server (2024-11-20) were improved UBL import, improved JSON return after parse (without empty elements), docker without SecurityAutoConfiguration and the valitool endpoint (not yet documented)

1.5.1 (2024-11-30) BankDetails and IncludedNotes work in the server, possibility to specify server address to be included in OpenAPI

1.6.0 (2024-12-30) File attachments work in the server, documented valitool and PDF, added and documented ignoreNotices parameter to validation. New UBL2CII/CII2UBL endpoints. Javascript example client documented. Added description of eeisi/eigor, file attachments and includednotes.

1.7.2 (2025-08-20) Outsourced the list of PHIVE VES-Ids and the tutorials, added Sentry config, migrated to Asciidoc, added the comprehensive example and swagger editor generated clients.
